[PyTorch Implementation] StyleGAN2

StyleGAN2(Analyzing and Improving the Image Quality of StyleGAN, 2020)의 PyTorch 코드를 정리한 글. 위 Repo를 바탕으로 일부 수정했으며, 전체적인 흐름 이해를 위한 코드로, logging 등 많은 부분이 생략되어 있음.





StyleGAN 시리즈 설명: https://bo-10000.tistory.com/158

[StyleGAN 시리즈] ProGAN/PGGAN, StyleGAN, StyleGAN2



원본 코드 Repo: https://github.com/rosinality/stylegan2-pytorch

GitHub - rosinality/stylegan2-pytorch: Implementation of Analyzing and Improving the Image Quality of StyleGAN (StyleGAN 2) in P



공식 코드는 Tensorflow로 작성되었음.

GitHub - NVlabs/stylegan2: StyleGAN2 - Official TensorFlow Implementation



1. Train

• main train 코드이다. Generator, discriminator, optimizer 등을 선언하고 train 함수를 호출한다.
• g_ema는 generator weight의 exponential moving average를 저장하는 모델이다. 최신 weight에 큰 가중치를 두면서 그동안의 모든 weight를 축적한다.

# modified from stylegan2-pytorch/train.py
# (https://github.com/rosinality/stylegan2-pytorch/blob/master/train.py)

def main(args):
    """
    :args.iter(int,default=800000): total number of train iterations
    :args.size(int,default=256): image size for model
    :args.latent(int,default=512): latent size
    """

    device = 'cuda'

    generator = Generator(args.size, args.latent).to(device)
    discriminator = Descriminator(args.size).to(device)
    g_ema = Generator(args.size, args.latent).to(device) #ema: exponential moving average
    g_ema.eval()
    accumulate(g_ema, generator, 0)

    g_optim = optim.Adam(generator.parameters(), lr=args.lr)
    d_optim = optim.Adam(discriminator, parameters(), lr=args.lr)

    dataset = MultiResolutionDataset(args.path, transform, args.size)
    loader = data.DataLoader(dataset, args.batch_size)

    train(args, loader, generator, discriminator, g_optim, d_optim, g_ema, device)

• 아래는 g_ema의 exponential moving average를 위한 함수이다. 아래 함수를 통해 매 iteration마다 g_ema와 generator의 weight를 mix해서 g_ema에 저장한다.

def accumulate(model1, model2, decay=0.999):
    par1 = dict(model1.named_parameters())
    par2 = dict(model2.named_parameters())

    for k in par1.keys():
        par1[k].data.mul_(decay).add_(par2[k].data, alpha=1-decay))

• 다음 함수를 통해 num_iter 만큼 train iteration을 반복한다.

def train(args, loader, generator, discriminator, g_optim, d_optim, g_ema, device):

    accum = 0.5 ** (32 / (10 * 1000))

    for i in range(args.num_iter):
    	real_img = next(loader)
        real_img = real_img.to(device)

        #1. train discriminator
        requires_grad(generator, False)
        requires_grad(discriminator, True)

        noise = mixing_noise(real_img.size(0), args.latent, args.mixing, device)
        fake_img = generator(nose)

        fake_pred = discriminator(fake_img)
        real_pred = discriminator(real_img)
        d_loss = d_logistic_loss(real_pred, fake_pred)

        discriminator.zero_grad()
        d_loss.backward()
        d_optim.step()

        #2. train generator
        requires_grad(generator, True)
        requires_grad(discriminator, False)

        noise = make_noise(real_img.size(0), args.latent, device)
        fake_img = generator(nosie)

        fake_pred = discriminator(fake_img)
        g_loss = g_nonsaturating_loss(fake_pred)

        generator.zero_grad()
        g_loss.backward()
        g_optim.step()

        accumulate(g_ema, generator, accum)

• requires_grad 함수는 모델 parameter의 requires_grad를 False로 설정하는 역할을 한다.

def requires_grad(model, flag=True):
    for p in model.parameters():
        p.requires_grad = flag

• make_noise : generator에 input으로 들어갈 random noise를 만든다.

def make_noise(batch, latent_dim, n_noise, device):
    return torch.randn(batch, latent_dim, device=device)





2. Loss functions

위 train 코드에서 사용되는 generator loss와 discriminator loss이다. 둘 다 softplus 함수를 이용한다.

#Discriminator loss
def d_logistic_loss(real_pred, fake_pred):
    real_loss = F.softplus(-real_pred)
    fake_loss = F.softplus(fake_pred)

    return real_loss.mean() + fake_loss.mean()

#Generator loss
def g_nonsaturating_loss(fake_pred):
    loss = F.softplus(-fake_pred).mean()

    return loss





3. Model

Generator과 Discriminator의 구현은 다음과 같다.



• Generator

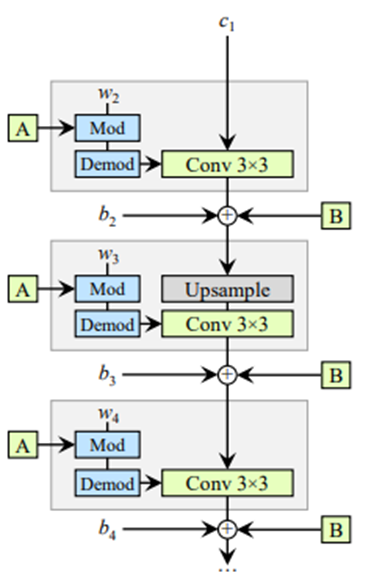

Generator 전체 구조

class Generator(nn.Module):
    def __init__(self, size, style_dim, n_mlp=8, channel_multiplier=2, blur_kernel=[1, 3, 3, 1], lr_mlp=0.01):
        """
        :input size: img size to generate
        :style_dim: latent vector size
        :n_mlp: number of mlps for style mapping network
        """
        super().__init__()

        log_size = int(math.log(size, 2))
        self.num_layers = (log_size - 2) * 2 + 1
        self.n_latent = log_size * 2 - 2
        channels = {
            4: 512,
            8: 512,
            16: 512,
            32: 512,
            64: 256 * channel_multiplier,
            128: 128 * channel_multiplier,
            256: 64 * channel_multiplier,
            512: 32 * channel_multiplier,
            1024: 16 * channel_multiplier,
        }

        style = [PixelNorm()]
        for _ in range(n_mlp):
            style.append(EqualLinear(style_dim, style_dim, lr_mul=lr_mlp, activation='fused_lrelu'))
        self.style = nn.Sequential(*style)

        in_channels = channels[4]

        self.constant_input = ConstantInput(in_channels)
        self.styled_conv1 = StyledConv(in_channels, in_channels, 3, style_dim, blur_kernel=blur_kernel)
        self.to_rgb1 = ToRGB(sin_channels, style_dim, upsample=False)

        self.styled_convs = nn.ModuleList()
        self.to_rgbs = nn.ModuleList()
        self.noises = nn.Module()

        for layer_idx in range(self.num_layers):
            res = (layer_idx + 5) // 2
            shape = [1, 1, 2**res, 2**rs]
            self.noises.register_buffer(f'noise_{layer_idx}', torch.randn(*shape))

        for i in range(3, self.log_size+1):
            out_channel = channels[2**i]

            self.convs.append(StyledConv(in_channel, out_channel, 3, style_dim, upsample=True, blur_kernel=blur_kernel))
            self.convs.append(StyledConv(out_channel, out_channel, 3, style_dim, blur_kernel=blur_kernel))
            self.to_rgbs.append(ToRGB(out_channel, style_dim))

            in_channel = out_channel

    def forward(self, styles):
        #1. prepare latent
        styles = self.style(styles)
        noise = [None] * self.num_layers

        inject_index = self.n_latent
        latent = styles[0].unsqueeze(1).repeat(1, inject_index, 1)

        #2. generator
        out = self.constant_input(latent.size(0))
        out = self.styled_conv1(out, latent[:, 0], noise=noise[0])
        skip = self.to_rgb(out, latent[:, 1])

        i = 1
        for styled_conv1, styled_conv2, noise1, noise2, to_rgb in zip(
            self.styled_convs[::2], self.styled_convs[1::2], noise[1::2], noise[2::2], self.to_rgbs
        ):
            out = styled_conv1(out, latent[:, i], noise=noise1)
            out = styled_conv2(out, latent[:, i + 1], noise=noise2)
            skip = to_rgb(out, latent[:, i + 2], skip) #to_rgb(out) + upsample(skip)

            i += 2

        return skip

• 주요 Generator module

class ConstantInput(nn.Module):
    def __init__(self, channel, size=4):
        super().__init__()

        self.input = nn.Parameter(torch.randn(1, channel, size, size))

    def forward(self, input):
        batch = input.size(0)
        out = self.input.repeat(batch, 1, 1, 1)

        return out


class StyledConv(nn.Module):
    def __init__(self, in_channel, out_channel, kernel_size, style_dim, upsample=False, blur_kernel=[1, 3, 3, 1], demodulate=True):
        super().__init__()

        self.conv = ModulatedConv2d(
            in_channel,
            out_channel,
            kernel_size,
            style_dim,
            upsample=upsample,
            blur_kernel=blur_kernel,
            demodulate=demodulate,
        )

        self.noise = NoiseInjection()
        self.activate = FusedLeakyReLU(out_channel)

    def forward(self, input, style, noise=None):
        out = self.conv(input, style)
        out = self.noise(out, noise=noise)
        out = self.activate(out)

        return


class ToRGB(nn.Module):
    def __init__(self, in_channel, style_dim, upsample=True, blur_kernel=[1, 3, 3, 1]):
        super().__init__()

        if upsample:
            self.upsample = Upsample(blur_kernel)

        self.conv = ModulatedConv2d(in_channel, 3, 1, style_dim, demodulate=False) #to RGB (channel=3) via 1x1conv
        self.bias = nn.Parameter(torch.zeros(1, 3, 1, 1))

    def forward(self, input, style, skip=None):
        out = self.conv(input, style)
        out = out + self.bias

        if skip is not None:
            skip = self.upsample(skip)
            out = out + skip

        return out

StyledConv



• Discriminator

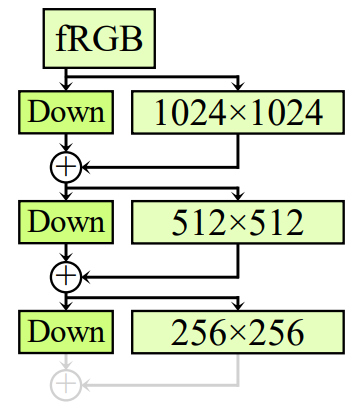

Discriminator 전체 구조

class Discriminator(nn.Module):
    def __init__(self, size, channel_multiplier=2, blur_kernel=[1, 3, 3, 1]):
        super().__init__()

        channels = {
            4: 512,
            8: 512,
            16: 512,
            32: 512,
            64: 256 * channel_multiplier,
            128: 128 * channel_multiplier,
            256: 64 * channel_multiplier,
            512: 32 * channel_multiplier,
            1024: 16 * channel_multiplier,
        }

        convs = [ConvLayer(3, channels[size], 1)]

        log_size = int(math.log(size, 2))

        in_channel = channels[size]

        for i in range(log_size, 2, -1):
            out_channel = channels[2 ** (i - 1)]

            convs.append(ResBlock(in_channel, out_channel, blur_kernel))

            in_channel = out_channel

        self.convs = nn.Sequential(*convs)

        self.stddev_group = 4
        self.stddev_feat = 1

        self.final_conv = ConvLayer(in_channel + 1, channels[4], 3)
        self.final_linear = nn.Sequential(
            EqualLinear(channels[4] * 4 * 4, channels[4], activation="fused_lrelu"),
            EqualLinear(channels[4], 1),
        )

    def forward(self, input):
        out = self.convs(input)

        batch, channel, height, width = out.shape
        group = min(batch, self.stddev_group)
        stddev = out.view(
            group, -1, self.stddev_feat, channel // self.stddev_feat, height, width
        )
        stddev = torch.sqrt(stddev.var(0, unbiased=False) + 1e-8)
        stddev = stddev.mean([2, 3, 4], keepdims=True).squeeze(2)
        stddev = stddev.repeat(group, 1, height, width)
        out = torch.cat([out, stddev], 1)

        out = self.final_conv(out)

        out = out.view(batch, -1)
        out = self.final_linear(out)

        return out

• 주요 Discriminator module

class ResBlock(nn.Module): #conv(input) + downsample(input)
    def __init__(self, in_channel, out_channel, blur_kernel=[1, 3, 3, 1]):
        super().__init__()

        self.conv1 = ConvLayer(in_channel, in_channel, 3)
        self.conv2 = ConvLayer(in_channel, out_channel, 3, downsample=True)

        self.skip = ConvLayer(
            in_channel, out_channel, 1, downsample=True, activate=False, bias=False
        )

    def forward(self, input):
        out = self.conv1(input)
        out = self.conv2(out)

        skip = self.skip(input)
        out = (out + skip) / math.sqrt(2)

        return out
